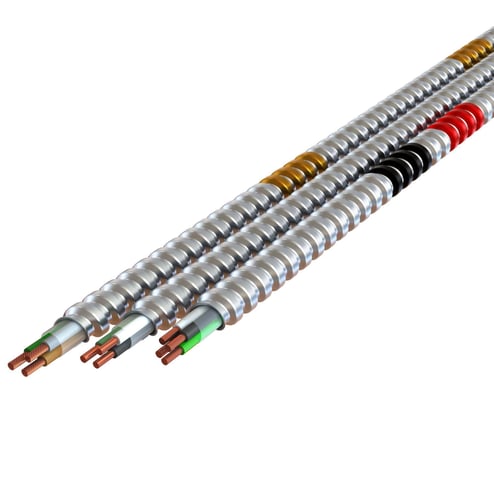

12/3 MC Cable 120V 250 FT Coil

00b98a7c e096 4af8 aa40 705a55c56777

Technical Documents

Associated Products

Specifications

Description CABLE MCAL-12/3-W/G-SOL-120V 250'*** SOLID ***
Voltage Rating 600V
Application For commercial, industrial, multi-residential branch circuits and feeder wiring, services for power, lighting, control and signal circuits, exposed or concealed, fished, surface mounted, embedded in plaster, environmental air-handling spaces, open or messenger supported aerial runs, dry and hazardous locations
Armour Interlocking Aluminum Strip
Catalog Description (MFR) MC Lite Type MC Cable, Traditional, With Ground And Neutral, 3 Conductors, 12 AWG Conductor And Ground, Solid Copper, Outside Diameter: 0.53 IN, 600 V, 90 DEG C (Dry), THHN Insulation, Polypropylene Tape Shield, Interlocking Aluminum Strip Armor, Color: 120/208 V: Black, Red, White, Green, 250 FT Coil, Weight: 135 LB/1000 FT, UL 83, 1479, 1569, 1581, 2556 File Numbers E80042 And R-14141, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant, ISO 9001 Certified. ColorSpec ID System
Certifications ECCN
Color Black, Red, White, Green
Conductor Material Copper
Conductor Size 12 AWG
Insulation Material THHN/THWN
Jacket Material Interlocked Aluminum Strip
Marketing Message (MFR) Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Number Of Conductors 3
Outside Diameter 0.53 IN
Product Name Armored Cable
Shield Polypropylene Tape
Special Features May be surface mounted, fished and/or embedded in plaster; Cable tray rated, install per NEC; UL Classified 1, 2, and 3 hour through (Fire) penetration product, R-14141; Environmental air-handling space installation per NEC 300.22; Made in USA of US and/or imported materials; ColorSpec ID System
Standard RoHS Compliant, UL 83, UL 1479, UL 1569, UL 1581, UL 2556, UL File No. E80042, NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645, Federal Specifications A-A-59544 (Formerly J-C30B), Meets OSHA and HUD Requirements, Cable Tray Rated, Install per NEC®, UL Classified 1, 2 and 3 Hour Through (Fire Stop) Penetration Product R-14141, Environmental Air Handling Space Installation per NEC® 300.22
Strands SOL
Temperature Rating 90 DEG C (Dry)
Type Type MC Traditional
Weight 135 LB/1000 FT
Wire Length 250 FT
