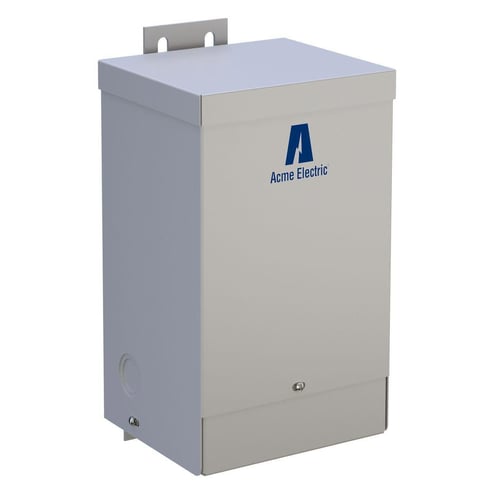

Acme Electric T181050 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 2.52 kVA Power Rating, 50/60 Hz, 1 Phase
Acme Electric T181050 Isolation Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 2.52 kVA Power Rating, 50/60 Hz, 1 Phase
Acme Electric | ID: 15008
Manufacturer Part Number: T181050
Specifications
| American Recovery and Reinvestment Act (ARRA) Compliant | C |
| Application | For Low Voltage Lighting Or Control Circuitry |
| Boost Voltage | 2.52 KVA/10.4 AMP: 220 V Line And 242 V Load |
| Brand Name | Acme Electric |
| Buy American Act (BAA) Compliant | C |
| Catalog Description (MFR) | Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 250VA |
| Commodity Code | 3910 |
| Connection | Wire Lead Screw Terminal |
| Construction | Encapsulated |
| Description | ACME T-1-81050 .250KVA BUCK&BOOST |
| Enclosure | NEMA 3R Steel |
| Frequency Rating | 50/60 |
| Insulation Class | 180 DEG C Class H |
| Maximum Output Current | 20.80 AMP At 12 V, 10.40 AMP At 24 V |
| Mounting | Wall |
| Number Of Phases | 1 |
| Phase | 1 Phase |
| Primary Voltage | 120 X 240 V |
| Product Name | Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 250VA |
| Product Type | Buck-Boost Transformer |
| Secondary Voltage | 12/24 V |
| Special Features | Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Type | Buck-Boost Transformer |
| UNSPSC | 39121025 |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 1
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
