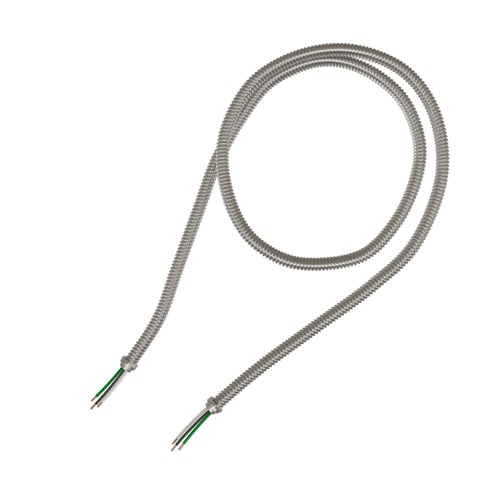

AFC 3/8F-3146 14/3 Solid 6FT FIX WHIP 3 WIRE 120V 4502-30 / LIT WHIP 55-29-20-01

10993 hs3nxrf1tdpuwz59

Technical Documents

Specifications

Description AFC 3/8F-3146 14/3X6' FIX WHIP3 WIRE 120V4502-30 / LIT WHIP 55-29-20-01
Voltage Rating 600V
Armour Interlocked Galvanized Steel Strip
Catalog Description (MFR) 14-3c BK WE GN Metallic Fixture Whips, 3/8"x6' Galvanized Type RW Steel Flexible Metal Conduit , 100 per Barrel, UL LISTED
Conductor Material Copper
Conductor Size 14 AWG
Connection 3/8" whips have screw in die cast connectors on the 18 AWG, 16AWG & 14 AWG; set screw die cast for the 12AWG1/2" whips have screw in die cast connectors.Available with customer specified connectors by special order
Finish Galvanized
Gauge 14 AWG
Includes Screw In Die Cast Connectors
Inside Diameter 0.375/0.393
Insulation Material THHN
Marketing Message (MFR) Metallic whips are a valuable option for work requiring short cable lengths. Whips are pre-cut lengths of Metallic conduit, 6ft long of either 3/8 or 1/2 inch flex, pre-wired, supplied with 6-inch leads for termination, and provided with the appropriate connector on each end, reducing time on the job site. They are convenient for powering lighting fixtures and motors. Intended for indoor uses and only where they will not be exposed to wet locations.
Material Galvanized Steel
Number Of Conductors 3
Outside Diameter 0.56/0.61
Product Name Metallic Whip
Short Description 14-3c MTWH 100PCS/BL
Standard UL 66, UL 83, UL 348, UL File No. E96572, NEC® 410/430/440/250/348/250.118(5)
Temperature Rating 194
Type Type UL
Wire Length 6 FT
