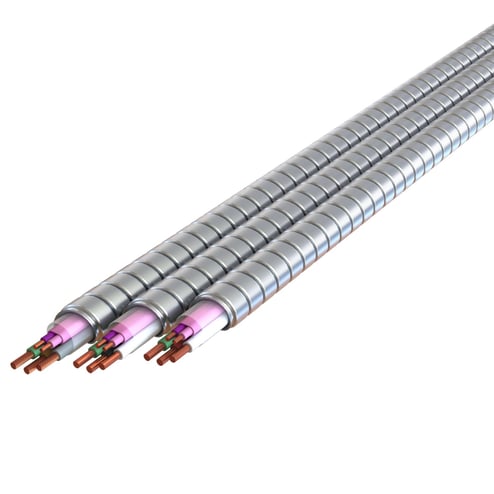

AFC AL58-42-L00 16/2 (120V) 12/2 COIL BLACK, WHITE, GREEN MC LUMINARY CABLE, 250FT
AFC AL58-42-L00 16/2 (120V) 12/2 COIL BLACK, WHITE, GREEN MC LUMINARY CABLE, 250FT
AFC CABLE SYSTEMS | ID: 542412
Manufacturer Part Number: AL58-42-L00

Specifications
| Description | AFC AL58-42-L00 16/2 (120V) 12/2STRANDED 250' COIL BLACK, WHITE,GREEN MC LUMINARY CABLE |
| Voltage Rating | 600V |
| Armour | Interlocked Aluminum Strip |
| Bend Radius | 8.625 |
| Conductor Material | Copper |
| Gauge | 12 AWG |
| Inside Diameter | 0.42 |
| Insulation Material | THHN |
| Material | Aluminum |
| Number Of Conductors | 2 |
| Outside Diameter | 0.575 IN |
| Short Description | 16-2(TPJ)/12-2S GLUMA 250C |
| Temperature Rating | 194 |
| Type | TYPE MC-PCS |
| Weight | 0.159 LB/FT |
| Wire Length | 250FT |
Availability
- Akron Qty 0
- Bedford Qty 250
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 0
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 250
