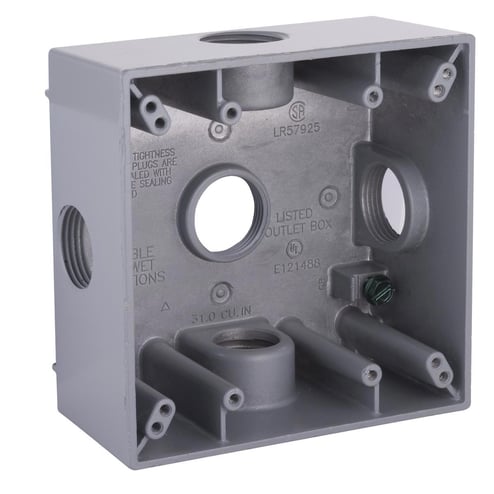

BELL 5342-0 Weatherproof Outlet Box, Die Cast Aluminum, 32 cu-in Capacity, 2 Gangs, (5) Outlets, 4-1/2 in H x 4-1/2 in W x 2-1/8 in D
BELL 5342-0 Weatherproof Outlet Box, Die Cast Aluminum, 32 cu-in Capacity, 2 Gangs, (5) Outlets, 4-1/2 in H x 4-1/2 in W x 2-1/8 in D
BELL | ID: 19561
Manufacturer Part Number: 5342-0
Technical Documents
Specifications
| Description | RACO 5342-0 WP ALUM BOX W/LUG 5HOLE 2G 3/4 KO ON ALL SIDESMULB 30254 |
| Application | Used in branch circuit wiring in wet, damp, dry locations and in electrical applications |
| Capacity | 32 cu-in |
| Color | Gray |
| Dimensions | 4-1/2 IN H x 4-1/2 IN W x 2-1/8 IN D |
| Enclosure Type | NEMA 3R |
| Finish | Powder Coated |
| Gang | 2 Gang |
| Hub Size | 3/4 In |
| Includes | (2) Closure Plugs, (5) Threaded Outlets, Mounting Hardware, Multi-Lingual Instructions, Ground Screw and Gasket |
| Knockouts | 3/4 |
| Material | Die Cast Aluminum |
| Mounting Type | Lug |
| Number Of Outlets | 5 |
