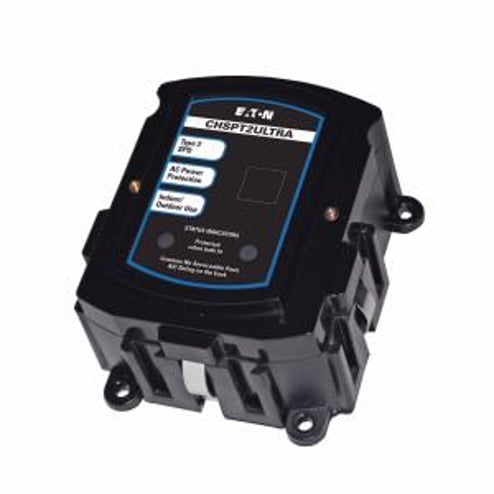

Cutler-Hammer CHSPT2ULTRA Surge Protection Device, 120/240 VAC, 60 Hz, 2 Poles, 1 Phase
Cutler-Hammer CHSPT2ULTRA Surge Protection Device, 120/240 VAC, 60 Hz, 2 Poles, 1 Phase
Eaton | ID: 442115
Manufacturer Part Number: CHSPT2ULTRA
Technical Documents
Specifications
| Description | EATON CHSPT2ULTRA SPD TYPE 2 CHSPSURGE PROTECTOR |
| Amperage Rating | - |
| Voltage Rating | 120/240V |
| Application | OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - Other |
| Catalog Description (MFR) | Eaton SPD Type 2 CHSP Service Entrance Surge Protection, 120/240V line, 150V L-N, 300V L-L MCOV, 600V L-N, 1000V L-L, 800V N-G, 600V L-G VPR, 22 kA SCCR, NEMA 4, Single-phase, 60 Hz, 20 kA nominal current discharge, 108 kA surge current |
| Certifications | UL 1449, cUL Certified, UL Recognized |
| Dimensions | 5 IN L x 4 IN W x 2-1/4 IN D |
| Enclosure Type | NEMA 4 |
| Frequency Rating | 60 Hz |
| Height | 2.5 IN |
| Marketing Message (MFR) | Eaton offers a comprehensive family of surge products for use at service entrances. These products can help protect sensitive electronics against the damaging effects of surges. Due to the evolution of electronics and microprocessors in the home, there is a continuous challenge to provide quality (clean) power for electronic loads such as appliances, computers/home office and entertainment systems. Surges caused by lightning, utility grid switching and other sources travel on current carrying conductors throughout the home, which can affect and destroy sensitive electronic loads. |
| Material | Plastic |
| Number Of Poles | 2 Pole |
| Number Of Wires | 4 |
| Operating Temperature | -40 to 50 C |
| Phase | 1 |
| Product Feature | Clear, visible LED indication displays protective status of device, Help protect appliances, TVs, sensitive electronic equipment, smart home devices and more, Internal and external installation options available, Limited product warranty and the industry’s best connected equipment warranty, Meet both UL 489 as well as UL 1449 4th Edition for surge protection |
| Product Name | Eaton CHSPT2 surge protection device |
| Product Type | Surge protection device |
| Short Circuit Rating | 22000 kA |
| Special Features | Meets or exceeds the requirments specified in IBC 2006, CBC2007, and UBCZone 4 |
| Standard | UL 1449,cUL Certified,UL Recognized |
| Type | Surge protection device |
| Width | 5 IN |
Availability
- Akron Qty 1
- Bedford Qty 6
- Chardon Qty 2
- Cleveland Qty 4
- Lighting Showroom Qty 0
- Macedonia Qty 2
- Mayfield Village (current selection) Qty 23
- Medina Qty 2
- Middleburg Qty 2
- Streetsboro Qty 2
- Westlake Qty 2
- Willoughby Qty 2
- Youngstown Qty 2
