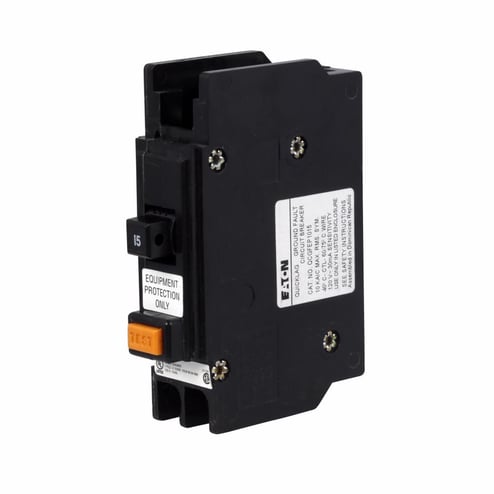

Cutler-Hammer QUICKLAG QCGFEP1015W2 Type QCGFEP Industrial Equipment Protector Circuit Breaker With Auxilliary Switch, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip
Cutler-Hammer QUICKLAG QCGFEP1015W2 Type QCGFEP Industrial Equipment Protector Circuit Breaker With Auxilliary Switch, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip
Eaton | ID: 74698
Manufacturer Part Number: QCGFEP1015W2
Specifications
| Description | EATON QCGFEP1015W2 EATON QC GFCICIRCUIT BREAKER |
| Amperage Rating | 15 A |
| Voltage Rating | 120V |
| Application | Datacenters - IT Space, CI and Hyper Converged, Generation - Conventional Energy - Conventional Energy, Marine Vessels and Equipment - Marine Vessels and Equipment - Other, Other, Generation - Renewable Energy - Alternative Energy |
| Connection | Cable-in/cable-out |
| Dimensions | 1 IN X 1 IN X 1 IN |
| Interrupt Rating | 10 kA |
| Number Of Poles | 1 Pole |
| Phase | 1 |
| Special Features | Auxiliary switch, 30 mA trip sensitivity |
| Trip Range | 30 mA |
| Trip Type | Thermal Magnetic |
| Type | Type QCGFEP Industrial Equipment Protector |
| Wire Size | 14 to 4 AWG Cu/Al |
