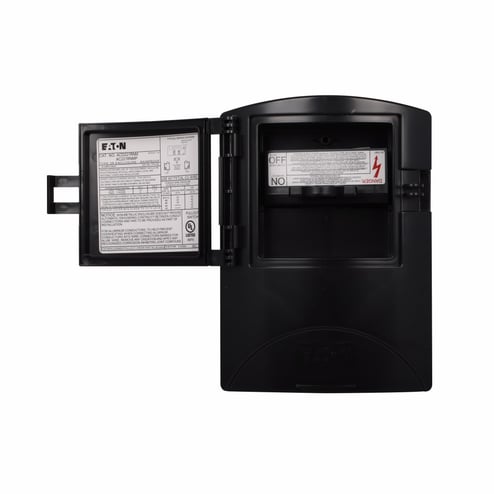

Eaton ACD222URNM 60 Amp, 2 Pole, Air Conditioning Disconnect, Non-Fusible, 120/240 Volt
Eaton ACD222URNM 60 Amp, 2 Pole, Air Conditioning Disconnect, Non-Fusible, 120/240 Volt
Eaton | ID: 1286
Manufacturer Part Number: ACD222URNM
Technical Documents
Specifications
| Description | EATON ACD222URNM AIRCONDITIONING DISCONNECT |
| Amperage Rating | 60 A |
| Voltage Rating | 240V |
| Application | Electrical Assemblies, EOEMs, Panels and Power Distribution Applications |
| Catalog Description (MFR) | Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 3 hp at 120V, 10 hp at 240V, Black |
| Color | Black |
| Dimensions | 5 IN L x 3.5 IN W x 8.63 IN H |
| Enclosure Type | NEMA 3R |
| Height | 8.63 in |
| Horsepower | 3 hp, 10 hp |
| Indoor or Outdoor Use | Outdoor |
| Marketing Message (MFR) | Eaton offers the industry’s most complete line of ACDs. Devices are available in fused, non-fused, molded case switch or three phase designs, and in metal or plastic enclosures for all application. An Air Conditioning Disconnect (ACD) provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit. |
| Material | Polycarbonate |
| NEMA Rating | 3R |
| Number Of Poles | 2 Pole |
| Short Circuit Rating | 10 kA |
| Standard | CSA Certified,UL Listed |
| Type | Non-Fused Pullout |
| Width | 3.5 in |
