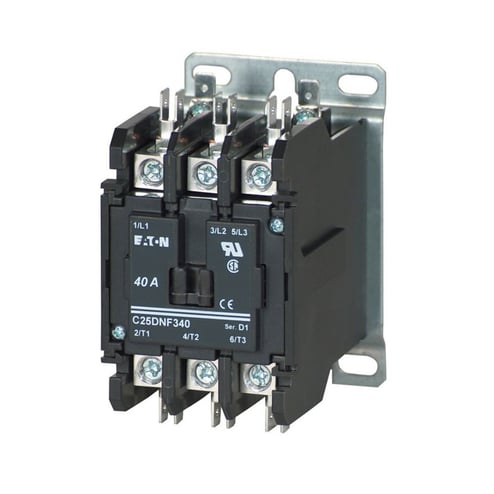

Eaton C25DNF340A 40 Amp Definite Purpose Contactor, 3 Pole, Non-Reversing, 120 Volt
Eaton C25DNF340A 40 Amp Definite Purpose Contactor, 3 Pole, Non-Reversing, 120 Volt
Eaton | ID: 77604
Manufacturer Part Number: C25DNF340A
Technical Documents
Specifications
| Description | EATON C25DNF340A 40A 120V DEFINITEPURPOSE CONTACTORS |
| Amperage Rating | 40 A |
| Voltage Rating | 120V |
| Application | Motor and Power Control Equipment Applications |
| Catalog Description (MFR) | Eaton definite purpose contactor, Quick, Class J, 600V, 60A, 40A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and 3P, 40A, Contactor, 3P, 50A, Box lugs (posidrive setscrew) and quick connect terminals , Non-reversing |
| Coil Voltage | 110 to 120 V AC |
| Connection | Quick |
| Dimensions | 3.35 IN L x 2.4 IN W x 3.75 IN H |
| Enclosure Type | Open with metal mounting plate |
| Frequency Rating | 50/60 HZ |
| Marketing Message (MFR) | Eaton offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications. Eaton DP contactors are designed to handle the most challenging installations. |
| Maximum Load | 40 A Inductive, 50 A Resistive |
| Number Of Poles | 3 Pole |
| Standard | UL Recognized,CSA Certified,RoHS Compliant |
| Type | Non-Reversing |
