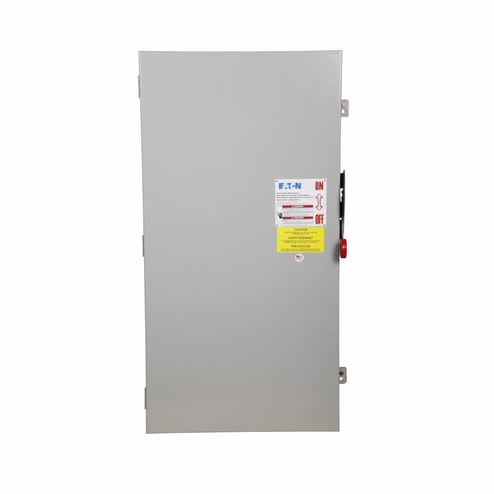

EATON DG325NGK K Series Cartridge Fusible General Duty Safety Switch, 240 V, 400 A, 50 hp, 125 hp, TPST Contact, 3 Poles
EATON DG325NGK K Series Cartridge Fusible General Duty Safety Switch, 240 V, 400 A, 50 hp, 125 hp, TPST Contact, 3 Poles
Eaton | ID: 49379
Manufacturer Part Number: DG325NGK
Specifications
| Description | EATON DG325NGK GD, 400 A, N1,FUSIBLE, NEUTRAL, 3-POLE |
| Amperage Rating | 400 A |
| Voltage Rating | 240V |
| Application | Electrical Assemblies, Panels and EOEMs, Commercial/Institutional Buildings/Structures - Power Distribution and Controls |
| Dimensions | 12.63 x 23 x 44.75 |
| Enclosure Type | NEMA 1 |
| Finish | Painted |
| Horsepower | 50 hp, 125 hp |
| Indoor or Outdoor Use | Indoor |
| Material | Steel |
| Mounting Type | Surface |
| NEMA Rating | 1 |
| Number Of Poles | 3 Pole |
| Number Of Wires | 4 |
| Phase | 3 |
| Type | Cartridge Fusible General Duty |
