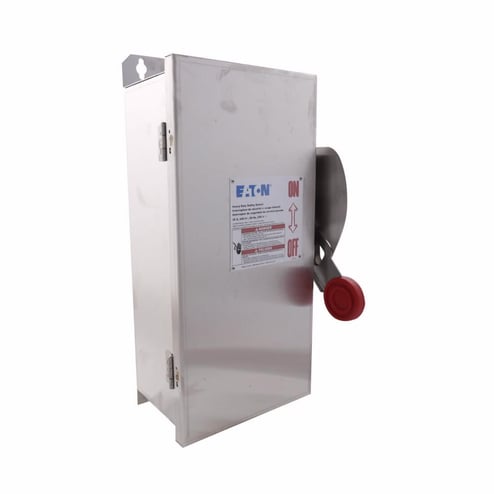

EATON DH221NWK316 K Series Corrosion-Resistant Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 VAC, 30 A, 1-3/4 hp, 3 hp, 5 hp, 7-1/2 hp, DPST Contact, 2 Poles
EATON DH221NWK316 K Series Corrosion-Resistant Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 VAC, 30 A, 1-3/4 hp, 3 hp, 5 hp, 7-1/2 hp, DPST Contact, 2 Poles
Eaton | ID: 47612
Manufacturer Part Number: DH221NWK316
Specifications
| Description | EATON DH221NWK316 HDST, 30 A, NEMA4X, 240 V, 2-POLE |
| Amperage Rating | 30 A |
| Voltage Rating | 240V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution, Control and Residential Applications |
| Dimensions | 20 IN L x 9-1/2 IN W x 8-1/2 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 1-3/4 hp, 3 hp, 5 hp, 7-1/2 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 316 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 2 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Short Circuit Rating | 10 kA |
| Special Features | Corrosion resistant Enhanced visible blade |
| Type | Corrosion-Resistant Fusible Heavy Duty Single Throw |
