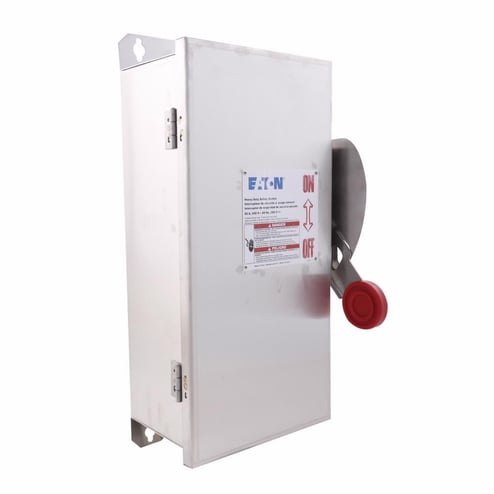

EATON DH323FCK K Series Corrosion-Resistant Fusible Heavy Duty Non-Metallic Single Throw Safety Switch, 240 VAC, 100 A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, TPST Contact, 3 Poles
EATON DH323FCK K Series Corrosion-Resistant Fusible Heavy Duty Non-Metallic Single Throw Safety Switch, 240 VAC, 100 A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, TPST Contact, 3 Poles
Eaton | ID: 39902
Manufacturer Part Number: DH323FCK
Specifications
| Description | EATON DH323FCK HDST, 100 A, NEMA4X, 240 V, 3-POLE |
| Amperage Rating | 100 A |
| Voltage Rating | 240V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution, Control and Harsh Environment Applications |
| Dimensions | 16.46 IN L x 14.25 IN W x 27.25 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 7-1/2 hp, 15 hp, 20 hp, 30 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | Krydon® |
| NEMA Rating | 4X |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Special Features | Corrosion Resistant |
| Type | Corrosion-Resistant Fusible Heavy Duty Non-Metallic Single Throw |
