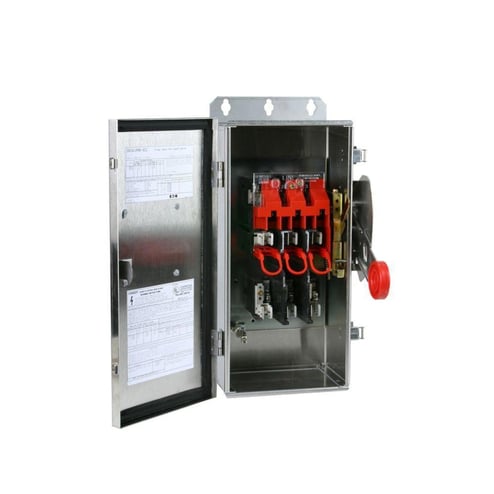

EATON DH361FWK K Series Heavy Duty Fusible Corrosion Resistant Receptacle Safety Switch, 600 VAC, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
EATON DH361FWK K Series Heavy Duty Fusible Corrosion Resistant Receptacle Safety Switch, 600 VAC, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
Eaton | ID: 51033
Manufacturer Part Number: DH361FWK
Technical Documents
Specifications
| Description | EATON DH361FWK HDST, 30 A, NEMA 4X,600 V, 3-POLE |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Electrical Assemblies, Panels, OEMs, Power Distribution, Commercial, Institutional Buildings and Residential Applications |
| Dimensions | 19.08 IN L x 8.05 IN W x 19.08 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 7-1/2 hp, 10 hp, 15 hp, 20 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 304 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Special Features | Corrosion Resistant |
| Type | Heavy Duty Fusible Corrosion Resistant |
