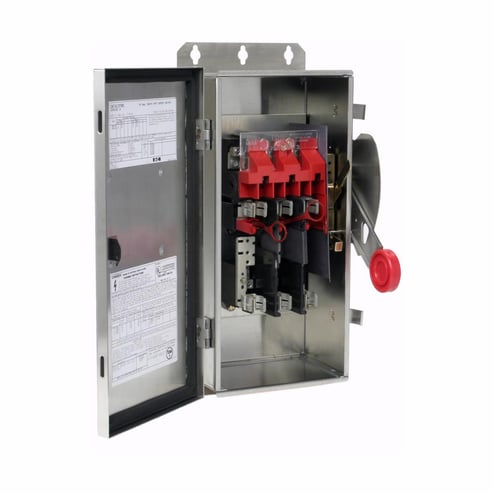

EATON DH361NWK316 Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 30 A, 7.5 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
EATON DH361NWK316 Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 30 A, 7.5 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
Eaton | ID: 524136
Manufacturer Part Number: DH361NWK316
Specifications
| Description | EATON DH361NWK316 HDST, 30 A, NEMA4X, 600 V, 3-POLE |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution, Control and Residential Applications |
| Dimensions | 10 IN L x 8.13 IN W x 17.88 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 7.5 hp, 10 hp, 15 hp, 20 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 316 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 3 Pole |
| Number Of Wires | 4 |
| Phase | 1/3 |
| Short Circuit Rating | 10 kA |
| Special Features | Corrosion Resistant |
| Type | Heavy Duty Fusible Single Throw |
