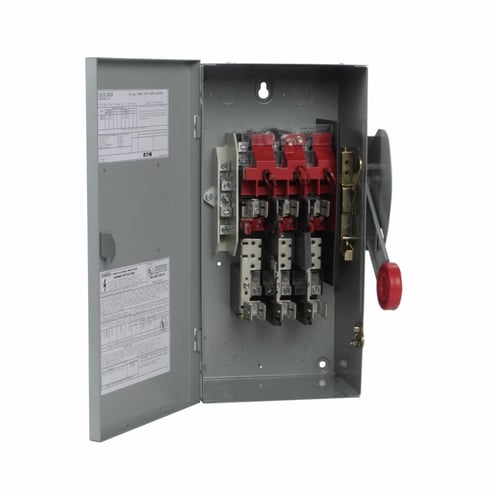

EATON DH362NGK Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 60 A, 20 hp, 25 hp, 30 hp, 50 hp, TPST Contact, 3 Poles
EATON DH362NGK Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 60 A, 20 hp, 25 hp, 30 hp, 50 hp, TPST Contact, 3 Poles
Eaton | ID: 28744
Manufacturer Part Number: DH362NGK
Specifications
| Description | EATON DH362NGK HDST, 60 A, NEMA 1,600 V, 3-POLE |
| Amperage Rating | 60 A |
| Voltage Rating | 600V |
| Application | Power Distribution, Residential, Commercial and Indoor Applications |
| Dimensions | 5.25 IN L x 7.75 IN W x 15.81 IN H |
| Enclosure Type | NEMA 1 |
| Finish | Painted |
| Horsepower | 20 hp, 25 hp, 30 hp, 50 hp |
| Indoor or Outdoor Use | Indoor |
| Material | Steel |
| NEMA Rating | 1 |
| Number Of Poles | 3 Pole |
| Number Of Wires | 4 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Fusible Single Throw |
