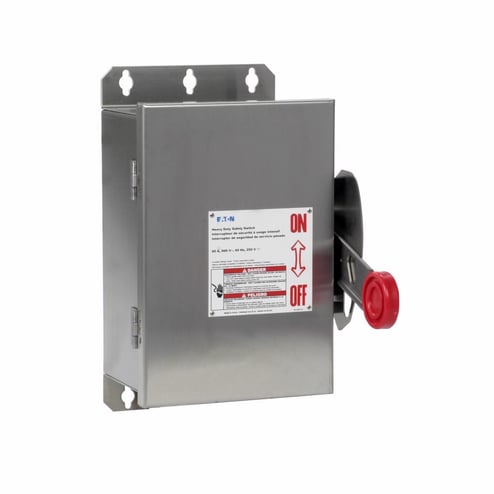

EATON DH362UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, TPST Contact, 3 Poles
EATON DH362UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, TPST Contact, 3 Poles
Eaton | ID: 11159
Manufacturer Part Number: DH362UWK
Specifications
| Description | EATON DH362UWK 60A/3P HD NF SAFETYSW 600V NEMA4X |
| Amperage Rating | 60 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Control, Power Distribution and Residential Applications |
| Dimensions | 10.22 IN L x 7.73 IN W x 19.08 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 10 hp, 20 hp, 25 hp, 50 hp, 60 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 304 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Non-Fusible Single Throw |
