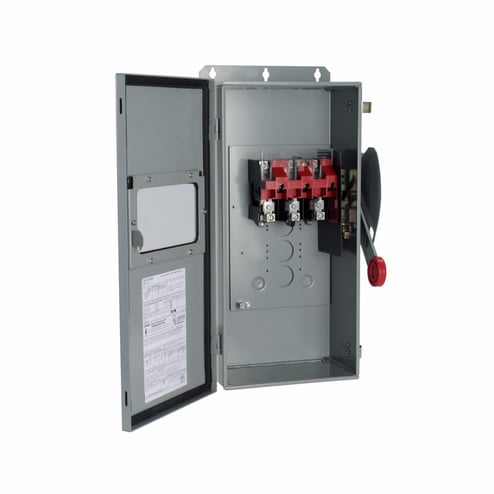

EATON DH363FDKW Heavy Duty Fusible Safety Switch, 600 VAC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, TPST Contact, 3 Poles
EATON DH363FDKW Heavy Duty Fusible Safety Switch, 600 VAC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, TPST Contact, 3 Poles
Eaton | ID: 561178
Manufacturer Part Number: DH363FDKW
Specifications
| Description | EATON DH363FDKW HDST, 100 A, NEMA12/3R, 600 V, 3-POLE |
| Amperage Rating | 100 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution and Control Applications |
| Catalog Description (MFR) | Eaton Enhanced visible blade single-throw safety switch, Enhanced visible blades, 100 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al |
| Dimensions | 27 IN L x 15 IN W x 12 IN H |
| Enclosure Type | NEMA 12 |
| Finish | Galvanized/Painted |
| Horsepower | 30 hp, 40 hp, 60 hp, 75 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Marketing Message (MFR) | Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical. |
| Material | Steel |
| NEMA Rating | 12;3R |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Special Features | Enhanced visible blade |
| Standard | UL Listed |
| Type | Heavy Duty Fusible |
