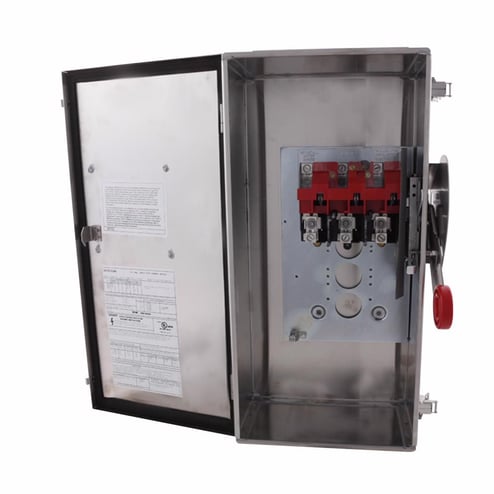

EATON DH363UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 100 A, 20 hp, 40 hp, 50 hp, 75 hp, 100 hp, TPST Contact, 3 Poles
EATON DH363UWK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 100 A, 20 hp, 40 hp, 50 hp, 75 hp, 100 hp, TPST Contact, 3 Poles
Eaton | ID: 26205
Manufacturer Part Number: DH363UWK
Specifications
| Description | EATON DH363UWK 100A/3P HD NF SAFETYSW 600V N4X |
| Amperage Rating | 100 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Control, Power Distribution and Residential Applications |
| Dimensions | 10.25 IN L x 11.13 IN W x 24 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 20 hp, 40 hp, 50 hp, 75 hp, 100 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 304 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Non-Fusible Single Throw |
