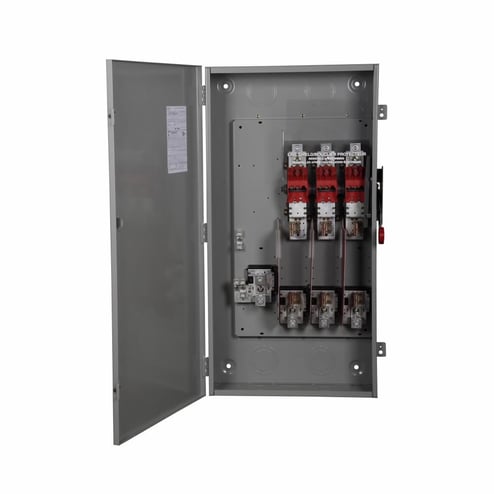

EATON DH365NGK Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 400 A, 250 hp, 350 hp, TPST Contact, 3 Poles
EATON DH365NGK Heavy Duty Fusible Single Throw Safety Switch With Neutral, 600 VAC, 400 A, 250 hp, 350 hp, TPST Contact, 3 Poles
Eaton | ID: 12997
Manufacturer Part Number: DH365NGK
Specifications
| Description | EATON DH365NGK HDST, 400 A, NEMA 1,600 V, 3-POLE |
| Amperage Rating | 400 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Control, Power Distribution, Residential and Indoor Applications |
| Dimensions | 45.5 IN L x 24.38 IN W x 10.25 IN H |
| Enclosure Type | NEMA 1 |
| Finish | Painted |
| Horsepower | 250 hp, 350 hp |
| Indoor or Outdoor Use | Indoor |
| Material | Steel |
| NEMA Rating | 1 |
| Number Of Poles | 3 Pole |
| Number Of Wires | 4 |
| Phase | 3 |
| Short Circuit Rating | 100 kA |
| Type | Heavy Duty Fusible Single Throw |
