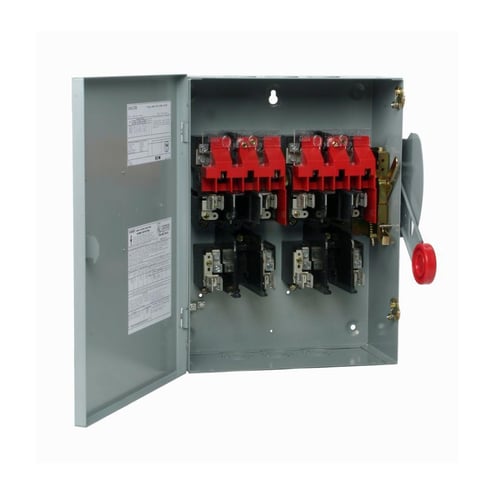

EATON DH461FGK Heavy Duty Fusible Single Throw Safety Switch, 600 VAC, 30 A, 15 hp, 20 hp, 25 hp, 4PST Contact, 4 Poles
EATON DH461FGK Heavy Duty Fusible Single Throw Safety Switch, 600 VAC, 30 A, 15 hp, 20 hp, 25 hp, 4PST Contact, 4 Poles
Eaton | ID: 450809
Manufacturer Part Number: DH461FGK
Technical Documents
Specifications
| Description | EATON DH461FGK HDST, 30 A, NEMA 1,600 V, 4-POLE |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Control, Power Distribution, Residential and Indoor Applications |
| Dimensions | 28-1/2 IN L x 17 IN W x 9 IN H |
| Enclosure Type | NEMA 1 |
| Finish | Painted |
| Horsepower | 15 hp, 20 hp, 25 hp |
| Indoor or Outdoor Use | Indoor |
| Material | Steel |
| NEMA Rating | 1 |
| Number Of Poles | 4 Pole |
| Number Of Wires | 4 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Fusible Single Throw |
