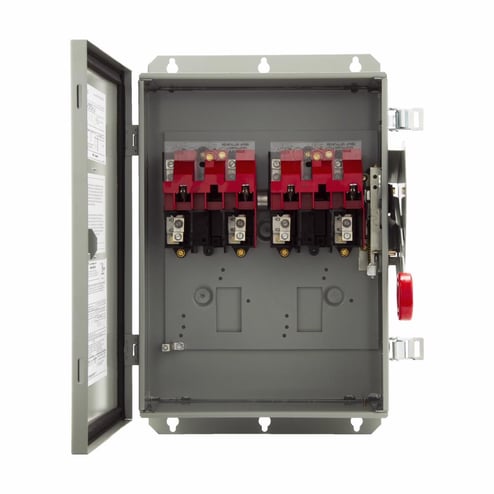

EATON DH461UDK Heavy Duty Non-Fusible Dusttight Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 10 hp, 20 hp, 25 hp, 30 hp, 4PST Contact, 4 Poles
EATON DH461UDK Heavy Duty Non-Fusible Dusttight Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 10 hp, 20 hp, 25 hp, 30 hp, 4PST Contact, 4 Poles
Eaton | ID: 516397
Manufacturer Part Number: DH461UDK
Specifications
| Description | EATON DH461UDK 30A/4P HD NF SAFETYSW 600V NEMA12/3R |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Control, Power Distribution, Industrial and Residential Applications |
| Dimensions | 25-1/2 IN L x 13-1/4 IN W x 9 IN H |
| Enclosure Type | NEMA 12 |
| Finish | Galvanized/Painted |
| Horsepower | 5 hp, 10 hp, 20 hp, 25 hp, 30 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | Steel |
| NEMA Rating | 12;3R |
| Number Of Poles | 4 Pole |
| Number Of Wires | 4 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Non-Fusible Dusttight Single Throw |
