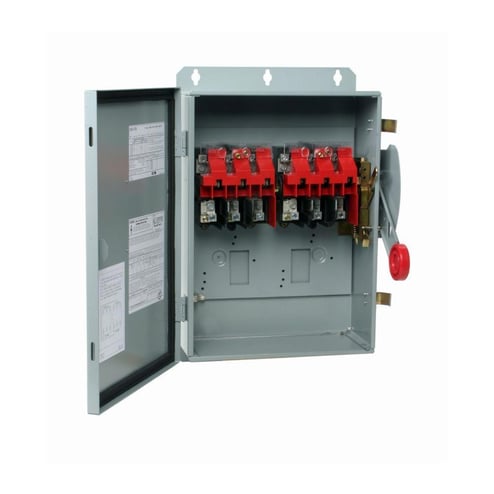

EATON DH661UWK Heavy Duty Non-Fusible Motor Circuit Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 10 hp, 15 hp, 20 hp, 30 hp, 6PST Contact, 6 Poles
EATON DH661UWK Heavy Duty Non-Fusible Motor Circuit Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 10 hp, 15 hp, 20 hp, 30 hp, 6PST Contact, 6 Poles
Eaton | ID: 78410
Manufacturer Part Number: DH661UWK
Technical Documents
Specifications
| Description | EATON DH661UWK 30A/6P HD NF SAFETYSW 600V NEMA4/4X |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution, Control and Residential Applications |
| Dimensions | 30 IN L x 18 IN W x 9-1/2 IN H |
| Enclosure Type | NEMA 4X |
| Horsepower | 5 hp, 10 hp, 15 hp, 20 hp, 30 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | 304 Stainless Steel |
| NEMA Rating | 4X |
| Number Of Poles | 6 Pole |
| Number Of Wires | 6 |
| Phase | 3 |
| Short Circuit Rating | 200 kA |
| Type | Heavy Duty Non-Fusible Motor Circuit Single Throw |
