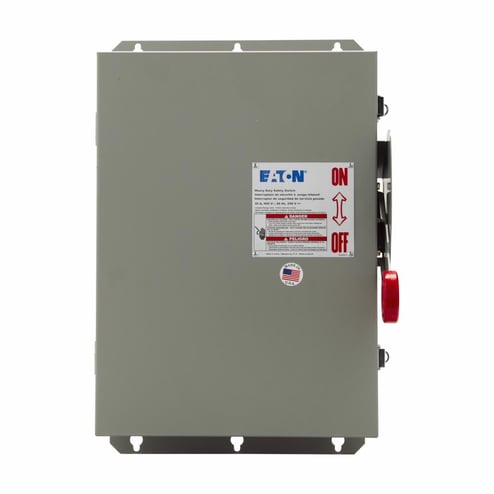

EATON DH663FDK Heavy Duty Fusible Motor Circuit Single Throw Safety Switch, 600 VAC, 100 A, 15 hp, 25 hp, 30 hp, 60 hp, 75 hp, 6PST Contact, 6 Poles
EATON DH663FDK Heavy Duty Fusible Motor Circuit Single Throw Safety Switch, 600 VAC, 100 A, 15 hp, 25 hp, 30 hp, 60 hp, 75 hp, 6PST Contact, 6 Poles
Eaton | ID: 547966
Manufacturer Part Number: DH663FDK
Specifications
| Description | EATON DH663FDK HDST, 100 A, NEMA12/3R, 600 V, 6-POLE |
| Amperage Rating | 100 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution and Control Applications |
| Dimensions | 10.22 IN L x 15.1 IN W x 24.95 IN H |
| Enclosure Type | NEMA 3R/12 |
| Finish | Galvanized/Painted |
| Horsepower | 15 hp, 25 hp, 30 hp, 60 hp, 75 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | Steel |
| NEMA Rating | 12;3R |
| Number Of Poles | 6 Pole |
| Number Of Wires | 6 |
| Phase | 3 |
| Type | Heavy Duty Fusible Motor Circuit Single Throw |
