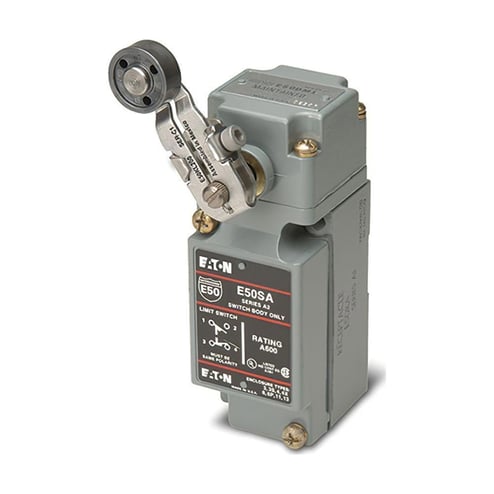

EATON E50AR1 Assembled Heavy Duty Plug-In Limit Switch, Side Rotary Actuator, 1NO-1NC Contact

E A T O N E50 B M1 2

Technical Documents

Specifications

Description EATON E50AR1 E50 HEAVY DUTY LIMITSWITCH
Amperage Rating -
Voltage Rating -
Action Rotary
Actuator Side rotary
Application Cutting and Forming, Automation and Logic Control Equipment, Water, Wastewater Systems and Other Applications
Catalog Description (MFR) E50 NEMA Limit Switch,Side Rotary,Spring Ret,14-250F(-10-121C),1NO-1NC,10A@240Vac,1A@250Vdc,Mech 10M Elec 1M cy full load,8000 cy/hr,Screw term,1/2NPT cond,NEMA 1,3,3S,4,4X,6,6P,13,IP67,Diec Zn,UL,CSA,CE
Color -
Connection Screw Terminal
Contact Configuration 1 NO-1 NC
Contact Rating 10 A at 240 V AC, 1 A at 250 V DC
Dimensions 4.22 IN X 1.54 IN X 2.25 IN
Enclosure Type NEMA 1/3/3S/4/4X/6/6P/13/IP67
Marketing Message (MFR) Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
Material Die Cast Zinc
Operating Temperature 10 to 200 deg F
Standard CSA Certified,UL Listed,RoHS Compliant,CE Marked
Type Assembled Heavy Duty Plug-In

Availability

  • Akron Qty 0
  • Bedford Qty 0
  • Chardon Qty 0
  • Cleveland Qty 0
  • Lighting Showroom Qty 0
  • Macedonia Qty 0
  • Mayfield Village (current selection) Qty 2
  • Medina Qty 0
  • Middleburg Qty 0
  • Streetsboro Qty 0
  • Westlake Qty 0
  • Willoughby Qty 0
  • Youngstown Qty 0
