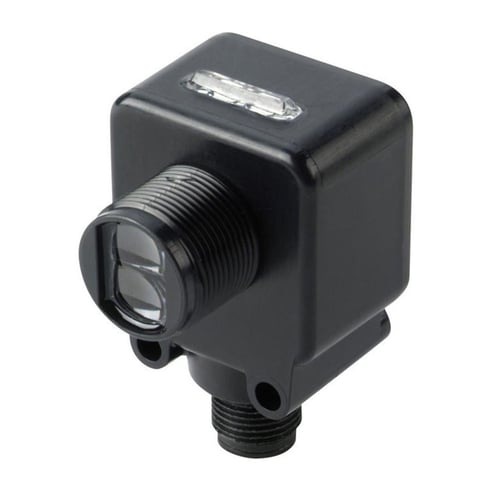

EATON E65-SMPR3-GDD SM Series Compact Photoelectric Sensor, Rectangle Shape, 10 ft, Visible Red Sensing Beam, 16 ms Response, AC L1 Switch/DC NPN Open Collector Output
EATON E65-SMPR3-GDD SM Series Compact Photoelectric Sensor, Rectangle Shape, 10 ft, Visible Red Sensing Beam, 16 ms Response, AC L1 Switch/DC NPN Open Collector Output
Eaton | ID: 707503
Manufacturer Part Number: E65-SMPP050-GLD
Technical Documents
Specifications
| Description | EATON E65-SMPP050-GLD PHOTOSENSOR,PERFECTPROX,2",ACDC,CON.,LT |
| Amperage Rating | 200 mA V AC/DC |
| Application | Electrical Assemblies, Panels, EOEM Electrical Assemblies Applications |
| Connection | 4-pin dual key micro connector |
| Enclosure Type | NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K |
| Environmental Conditions | -13 to 158 deg F Storage Temperature |
| Frequency Rating | 50/60 HZ |
| Operating Temperature | -13 to 131 deg F |
| Response Time | 16 ms |
| Sensing Range | 2 in |
| Shape | Rectangle |
| Type | 3-Wire |
