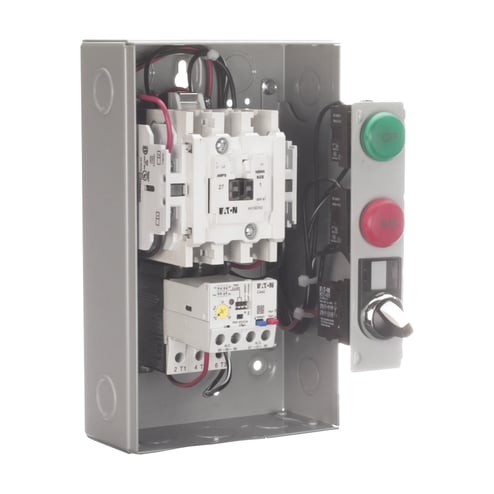

EATON ECN0501AAA-R63/B Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 110/120 V AC V Coil, NEMA 1 Enclosure
EATON ECN0501AAA-R63/B Freedom Full Voltage Non-Reversing Non-Combination NEMA Starter, 110/120 V AC V Coil, NEMA 1 Enclosure
Eaton | ID: 462061
Manufacturer Part Number: ECN0501AAA-R63/B
Specifications
| Description | EATON ECN0501AAA-R63/B NON-COMBONEMA 1 FVNR SZ 0 120VAC COIL |
| Amperage Rating | 1-5 A |
| Voltage Rating | 120V |
| Application | Motor Control Applications |
| Catalog Description (MFR) | Eaton Freedom NEMA motor control starter, 110V/50 Hz-120V/60 Hz, NEMA 1, Non-combination non-reversing starter, NEMA size 0, 1-5A solid-state relay without ground fault |
| Coil Voltage | 110/120 V AC |
| Dimensions | 14.9 IN L x 10.1 IN W x 8.5 IN H |
| Enclosure Type | NEMA 1 |
| Frequency Rating | 50/60 HZ |
| Marketing Message (MFR) | Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor. |
| Phase | 1 |
| Standard | UL Listed file E1491,Contact Manufacturer |
| Type | Full Voltage Non-Reversing Non-Combination |
