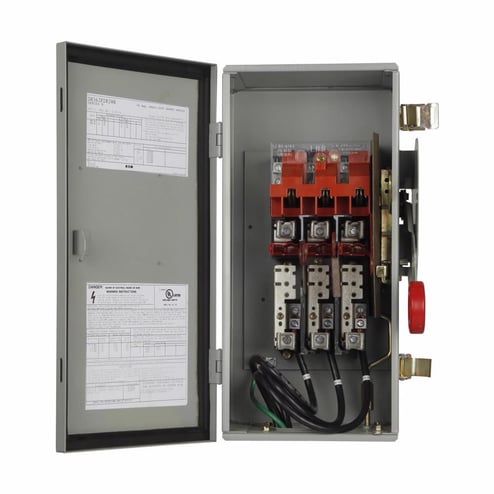

EATON EnviroLine DH361FDK2WR K Series Fusible Harsh Environment Heavy Duty Single Throw Safety Switch, 600 VAC, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
EATON EnviroLine DH361FDK2WR K Series Fusible Harsh Environment Heavy Duty Single Throw Safety Switch, 600 VAC, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, TPST Contact, 3 Poles
Eaton | ID: 568592
Manufacturer Part Number: DH361FDK2WR
Specifications
| Description | EATON DH361FDK2WR HDST, 30 A, NEMA12/3R, 600 V, 3-POLE |
| Amperage Rating | 30 A |
| Voltage Rating | 600V |
| Application | Commercial, Institutional Buildings, Structures, Power Distribution, Control, Portable Power Applications such as Welders, Infrared Ovens, Batch Feeders, Conveyors, Truck and Marine Docks |
| Dimensions | 30 IN L x 13-3/4 IN W x 10 IN H |
| Enclosure Type | NEMA 3R/12 |
| Finish | Hot Dipped Galvanized/Painted |
| Horsepower | 7-1/2 hp, 10 hp, 15 hp, 20 hp |
| Indoor or Outdoor Use | Indoor/Outdoor |
| Material | Steel |
| NEMA Rating | 12;3R |
| Number Of Poles | 3 Pole |
| Number Of Wires | 3 |
| Phase | 1/3 |
| Short Circuit Rating | 200 kA |
| Special Features | Crouse-Hinds®ARKTITE receptacle |
| Type | Fusible Harsh Environment Heavy Duty Single Throw |
