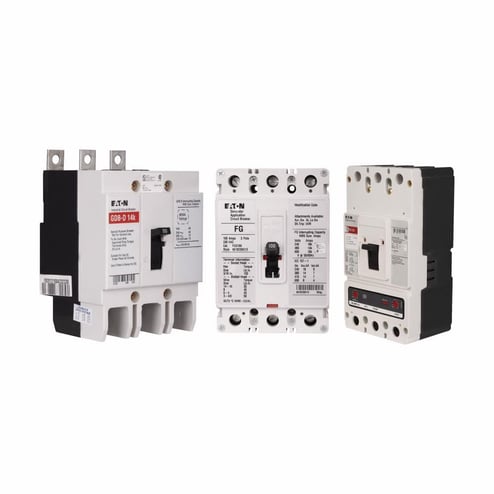

EATON GHB2015 C Series Type GHB Molded Case Circuit Breaker, 480Y/277 VAC/125/250 VDC, 15 A, 65/14 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
EATON GHB2015 C Series Type GHB Molded Case Circuit Breaker, 480Y/277 VAC/125/250 VDC, 15 A, 65/14 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Eaton | ID: 2605
Manufacturer Part Number: GHB2015
Specifications
| Description | EATON GHB2015 GHB 2P 15A 277/480VACMAX125/250VDC MAX |
| Amperage Rating | 15 A |
| Voltage Rating | 277/480V |
| Application | Circuit Protection Applications |
| Catalog Description (MFR) | Eaton Series C complete molded case circuit breaker, G-frame, GHB, Complete breaker, Fixed thermal, Fixed magnetic trip type, Two-pole, 15 A, 480Y/277 Vac, 125/250 Vdc, 50/60 Hz |
| Current Rating | 15 A |
| Dimensions | 3.8 IN L x 1.8 IN W x 4.8 IN H |
| Enclosure Type | NEMA 4 |
| Frame | G |
| Frequency Rating | 50/60 HZ |
| Interrupt Rating | 65/14 kA |
| Marketing Message (MFR) | Experience the superior quality of the Eaton Series C Molded Case Circuit Breaker. The Series C circuit breaker is ideal for panelboards, switchboards, motor control centers, and busway applications. Choose from a premier selection of trip units including thermal magnetic, electronic, and magnetic only switches. Available for systems up to 600 VAC or 250 VDC with current ratings up to 800A. |
| Mounting Type | Bolted-On |
| Number Of Poles | 2 Pole |
| Phase | 3 |
| Standard | UL Listed,Federal Specifications Classification W-C375B |
| Trip Type | Thermal Magnetic |
| Type | Type GHB |
| Wire Size | 14 to 10 AWG |
