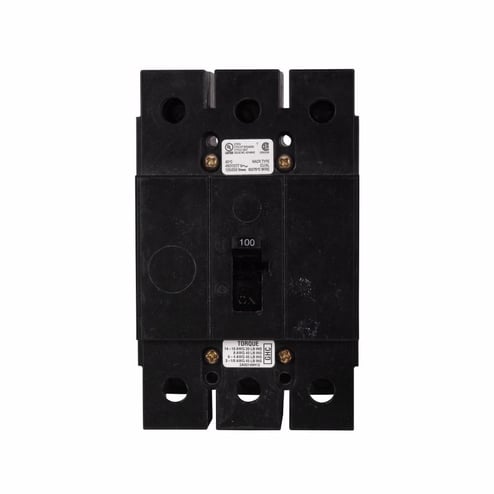

EATON GHC3100 C Series Type GHC Complete Molded Case Circuit Breaker, 240/277/480Y VAC/125/250 VDC, 100 A, 14/65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip

Specifications

Description	EATON GHC3100 GHC BRKRR 3P 100A14KAIC
Amperage Rating	100 A
Application	Used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection, for reverse feed applications
Catalog Description (MFR)	Eaton Series C complete molded case circuit breaker, G-frame, GHC, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 100A, 480Y/277 Vac, 125/250 Vdc, 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac, 50/60 Hz
Current Rating	100 A
Dimensions	2.63 IN L x 3 IN W x 4.88 IN H
Frame	G
Frequency Rating	50/60 HZ
Interrupt Rating	14/65 kA
Marketing Message (MFR)	Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.
Material	Glass Polyester
Number Of Poles	3 Pole
Phase	3
Standard	UL Listed
Trip Type	Thermal Magnetic
Type	Type GHC Complete
