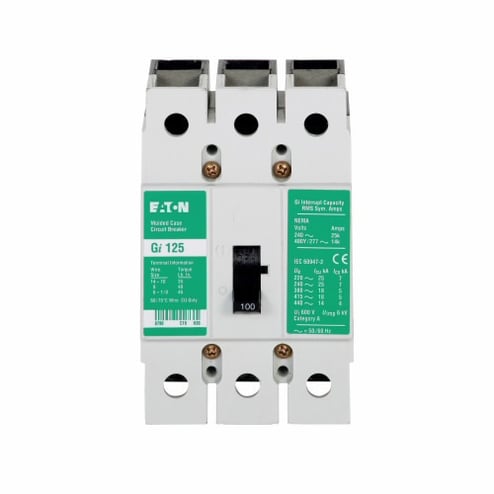

EATON GI3080 C Series Type GI Universal Molded Case Circuit Breaker, 480 VAC, 80 A, 14 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
EATON GI3080 C Series Type GI Universal Molded Case Circuit Breaker, 480 VAC, 80 A, 14 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Eaton | ID: 589894
Manufacturer Part Number: GI3080
Specifications
| Description | EATON GI3080 EATON SERIES CCOMPLETE MOLDED CASE CIRCUITBREAKER |
| Amperage Rating | 80 A |
| Voltage Rating | 480V |
| Application | Panelboard, Switchboard, Motor Control Center, Busway and Reverse Feed Applications |
| Connection | Cable |
| Dimensions | 4-7/8 IN H x 3 IN W x 2-13/16 IN D |
| Enclosure Type | NEMA AB1-1993 |
| Frame | G |
| Frequency Rating | 50/60 HZ |
| Interrupt Rating | 14 kA |
| Mounting Type | Surface |
| Number Of Poles | 3 Pole |
| Trip Type | Thermal Magnetic |
| Type | Type GI Universal |
| Wire Size | 10 to 1/0 AWG |
