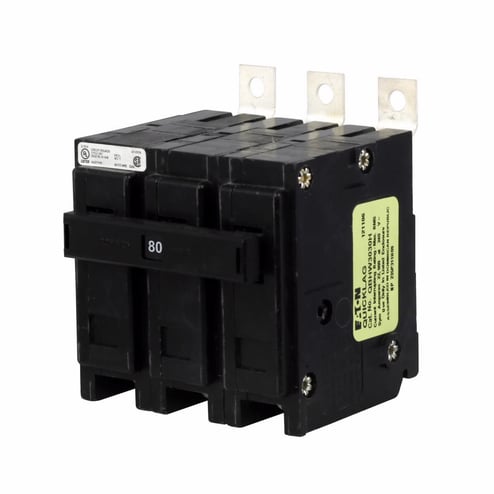

EATON QBHW3080HT Quicklag Type QBHW Miniature Circuit Breaker, 240 VAC, 80 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable Trip
EATON QBHW3080HT Quicklag Type QBHW Miniature Circuit Breaker, 240 VAC, 80 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable Trip
Eaton | ID: 579035
Manufacturer Part Number: QBHW3080HT
Specifications
| Description | EATON QBHW3080HT EATON QB THERMALMAGNETIC CIRCUIT BREAKER |
| Amperage Rating | 80 A |
| Voltage Rating | 240V |
| Application | Industrial Applications |
| Dimensions | 3.8 IN H x 3.2 IN W x 4.9 IN D |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 22 kA |
| Mounting Type | Bolted-On |
| Number Of Poles | 3 Pole |
| Phase | 3 |
| Special Features | Ring or Spade Lug Terminals |
| Trip Type | Thermal Magnetic |
| Type | Type QBHW |
| Wire Size | 8 to 1/0 AWG |
