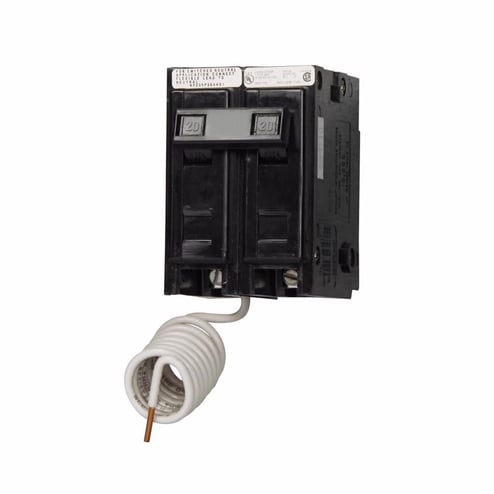

EATON QuickLag BAB2020S Type BAB Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip
EATON QuickLag BAB2020S Type BAB Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip
Eaton | ID: 41272
Manufacturer Part Number: BAB2020S
Specifications
| Description | EATON BAB2020S BAB BREAKER 2P 20AMAX 240V MAX 10K AIC |
| Amperage Rating | 20 A |
| Voltage Rating | 120/240V |
| Application | Datacenters, IT Space, CI and Hyper Converged, Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Residential Buildings and Facilities, Circuit Protection and Industrial Applications |
| Catalog Description (MFR) | Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,20 A,10 kAIC,Two-pole,120/240 V,Non-Interchangeable,Q7,BAB,120VAC Shunt Trip |
| Dimensions | 3.8 IN L x 3.2 IN W x 4.9 IN H |
| Frequency Rating | 50/60 HZ |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs. |
| Mounting Type | Bolted-On |
| Number Of Poles | 2 Pole |
| Phase | 1 |
| Special Features | Bolt-on mounting |
| Standard | UL Listed,CSA Certified |
| Trip Type | Thermal Magnetic |
| Type | Type BAB |
| Wire Size | 14 to 4 AWG |
