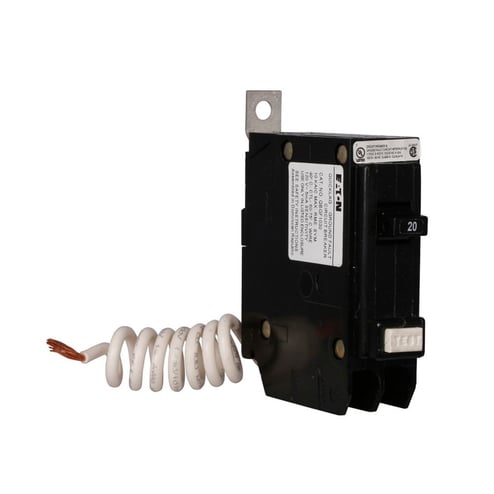

EATON QuickLag QBHGFEP1020V Type QBHGFEP Equipment Protector Industrial Ground Fault Circuit Breaker, 120 VAC, 20 A, 22 kA Interrupt, 1 Pole, Non-Interchangeable Thermal Magnetic Trip
EATON QuickLag QBHGFEP1020V Type QBHGFEP Equipment Protector Industrial Ground Fault Circuit Breaker, 120 VAC, 20 A, 22 kA Interrupt, 1 Pole, Non-Interchangeable Thermal Magnetic Trip
Eaton | ID: 629699
Manufacturer Part Number: QBHGFEP1020V
Specifications
| Description | EATON QBHGFEP1020V BOLT-ON 1P GFEP22KAIC 30MA 20A 50 DEG C |
| Amperage Rating | 20 A |
| Voltage Rating | 120V |
| Application | Industrial Applications |
| Dimensions | 6.25 IN X 2.25 IN X 3.5 IN |
| Interrupt Rating | 22 kA |
| Mounting Type | Bolted-On |
| Number Of Poles | 1 Pole |
| Special Features | 30 mA Sensitivity, 50° C Calibration |
| Trip Range | 30 mA |
| Trip Type | Thermal Magnetic |
| Type | Type QBHGFEP Equipment Protector Industrial |
| Wire Size | 14 to 4 AWG Al/Cu |
