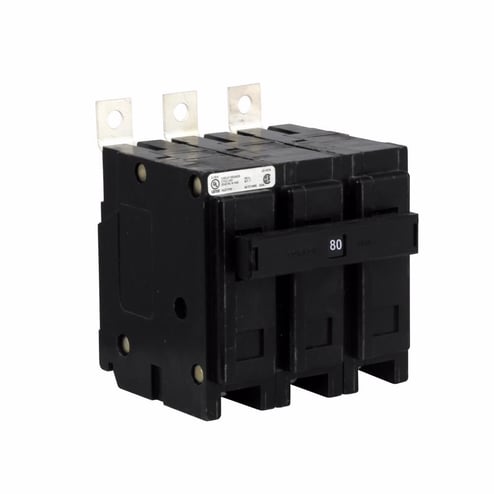

EATON QuickLag QBHW3080H Type QBHW Miniature Circuit Breaker, 240 VAC, 80 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QBHW3080H Type QBHW Miniature Circuit Breaker, 240 VAC, 80 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 62763
Manufacturer Part Number: QBHW3080H
Specifications
| Description | EATON QBHW3080H 3 POLE 80 AMP QBHWBREAKER |
| Amperage Rating | 80 A |
| Voltage Rating | 240V |
| Application | Circuit Protection, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Marine Vessels and Equipment, Datacentres, IT Space, CI and Hyper Converged and Industrial Applications |
| Dimensions | 3.8 x 3.2 x 4.9 |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 22 kA |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 Pole |
| Trip Type | Thermal Magnetic |
| Type | Type QBHW |
