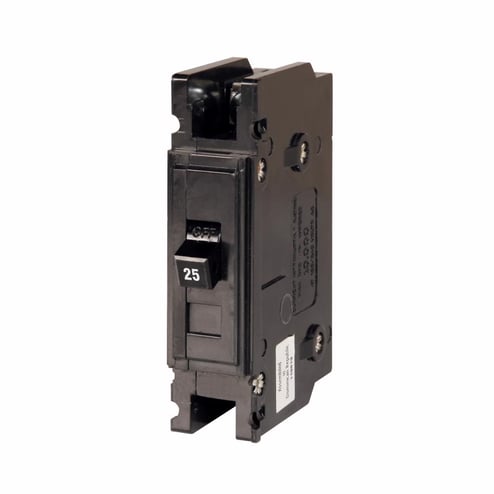

EATON QuickLag QC1025 Type QC Miniature Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QC1025 Type QC Miniature Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 293949
Manufacturer Part Number: QC1025
Specifications
| Description | EATON QC1025 QUICKLAG INDUSTRIALCIRCIT BREAKER |
| Amperage Rating | 25 A |
| Voltage Rating | 120/240V |
| Application | Conventional Energy, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment, Residential Buildings and Facilities, Circuit Protection and Industrial Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QC Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,25 A,10 kAIC,Single-pole,120/240 V,Thermal-magnetic,QC,Non-interchangeable |
| Dimensions | 3.8 IN L x 1.2 IN W x 4.8 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Panel |
| Number Of Poles | 1 Pole |
| Standard | CSA Certified,UL Listed |
| Trip Type | Thermal Magnetic |
| Type | Type QC |
