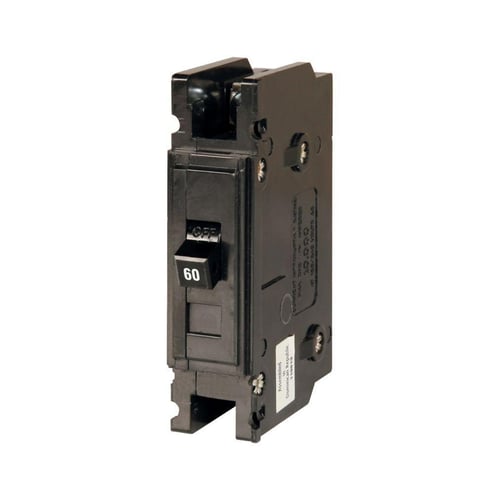

EATON QuickLag QC1060 Type QC Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QC1060 Type QC Miniature Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 645239
Manufacturer Part Number: QC1060
Technical Documents
Specifications
| Description | EATON QC1060 QC 1P 60A 120/240VACMAX 10KAIC |
| Amperage Rating | 60 A |
| Voltage Rating | 120/240V |
| Application | Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment and Circuit Protection, Datacenters - IT Space, CI and Hyper Converged Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QC Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,60 A,10 kAIC,Single-pole,120/240 V,Thermal-magnetic,Cable-in/cable-out,QC,Non-interchangeable |
| Connection | Cable-in/cable-out |
| Dimensions | 3.7 IN L x 1.3 IN W x 4.8 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Panel |
| Number Of Poles | 1 Pole |
| Standard | UL Listed,CSA Certified |
| Trip Type | Thermal Magnetic |
| Type | Type QC |
