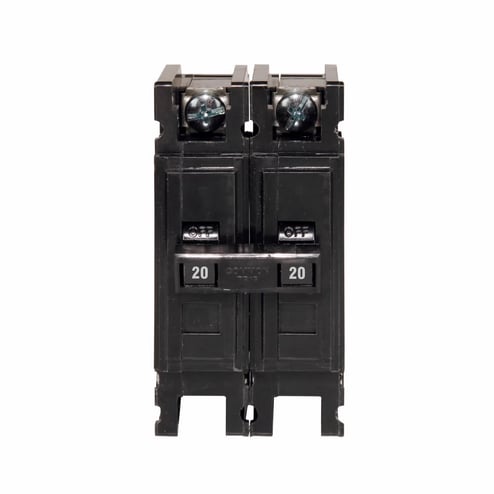

EATON QuickLag QC2020 Type QC Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QC2020 Type QC Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 18138
Manufacturer Part Number: QC2020
Specifications
| Description | EATON QC2020 EATON QC THERMALMAGNETIC CIRCUIT BREAKER |
| Amperage Rating | 20 A |
| Voltage Rating | 120/240V |
| Application | Circuit Protection, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Marine Vessels and Equipment, Datacenters, IT Space, CI and Hyper Converged and Industrial Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QC Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,20 A,10 kAIC,Two-pole,120/240 V,Thermal-magnetic,Cable-in/cable-out,QC,Non-interchangeable |
| Connection | Cable-in/cable-out |
| Dimensions | 3.8 IN L x 2.2 IN W x 4.8 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Panel |
| Number Of Poles | 2 Pole |
| Standard | UL Listed,CSA Certified |
| Trip Type | Thermal Magnetic |
| Type | Type QC |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 0
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
