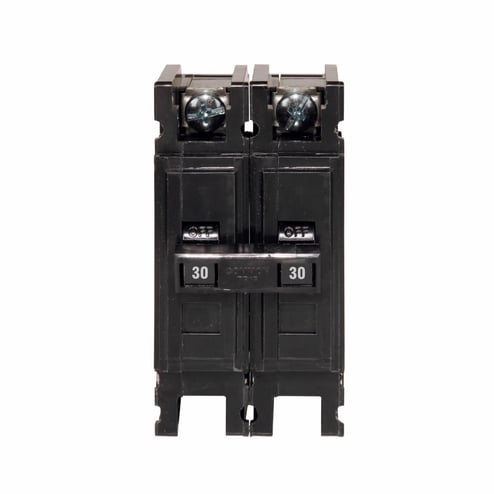

EATON QuickLag QC2030H Type QC Miniature Circuit Breaker, 240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QC2030H Type QC Miniature Circuit Breaker, 240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 104033
Manufacturer Part Number: QC2030H
Specifications
| Description | EATON QC2030H TYPE QC BREAKER 2P30A 240VAC MAX 10KAIC |
| Amperage Rating | 30 A |
| Voltage Rating | 240V |
| Application | Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment and Circuit Protection, Datacenters - IT Space, CI and Hyper Converged Applications |
| Connection | Cable-in/cable-out |
| Dimensions | 4 IN L x 3.3 IN W x 2 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Mounting Type | Panel |
| Number Of Poles | 2 Pole |
| Trip Type | Thermal Magnetic |
| Type | Type QC |
