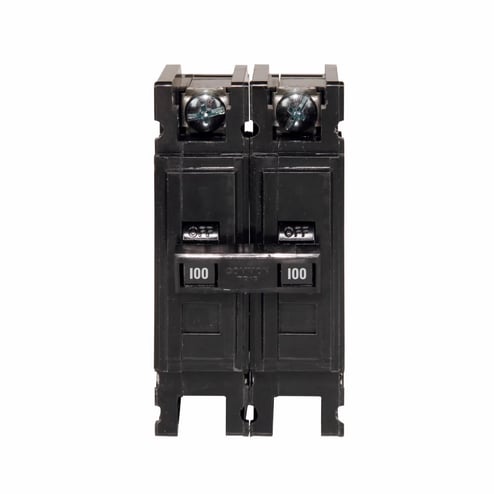

EATON QuickLag QC2100 Type QC Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QC2100 Type QC Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 19330
Manufacturer Part Number: QC2100
Specifications
| Description | EATON QC2100 EATON QC THERMALMAGNETIC CIRCUIT BREAKER |
| Amperage Rating | 100 A |
| Voltage Rating | 120/240V |
| Application | Circuit Protection, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Marine Vessels and Equipment, Datacenters, IT Space, CI and Hyper Converged and Industrial Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QC Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,100 A,10 kAIC,Two-pole,120/240 V,Thermal-magnetic,Cable-in/cable-out,QC,Non-interchangeable |
| Connection | Cable-in/cable-out |
| Dimensions | 3.9 IN L x 2.1 IN W x 4.7 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Panel |
| Number Of Poles | 2 Pole |
| Standard | UL Listed,CSA Certified |
| Trip Type | Thermal Magnetic |
| Type | Type QC |
