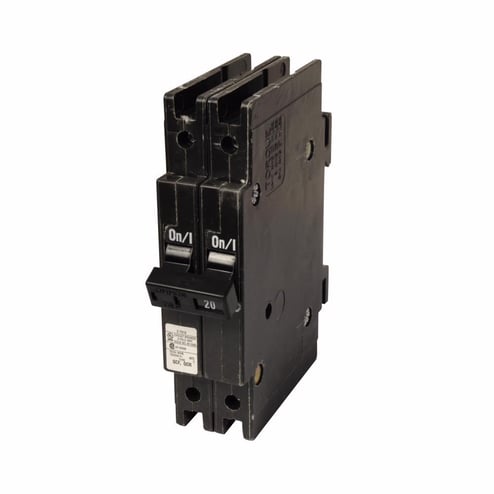

EATON QuickLag QCF2020 Type QCF Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
EATON QuickLag QCF2020 Type QCF Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Eaton | ID: 501207
Manufacturer Part Number: QCF2020
Specifications
| American Recovery and Reinvestment Act (ARRA) Compliant | C |
| Application | OtherGeneration - Renewable Energy - Alternative EnergyGeneration - Conventional Energy - Conventional EnergyMarine Vessels and Equipment - Marine Vessels and Equipment - OtherDatacenters - IT Space: CI and Hyper Converged |
| Brand Name | Eaton |
| Buy American Act (BAA) Compliant | C |
| Catalog Description (MFR) | Eaton Quicklag Type QCF 1/2-inch Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,20 A,10 kAIC,Two-pole,120/240 V,Thermal-magnetic,Cable-in/cable-out,QCF,Fixed |
| Connection | Cable-in/cable-out |
| Description | EATON QCF2020 QCF BKR 2P 20A120/240VAC |
| Dimensions | 4.6000 IN X 3.0000 IN X 1.2000 IN |
| Interrupt Rating | 10 |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Standard | UL Listed,CSA Certified |
| Type | Thermal magnetic circuit breakers |
| UNSPSC | 39121603 |
