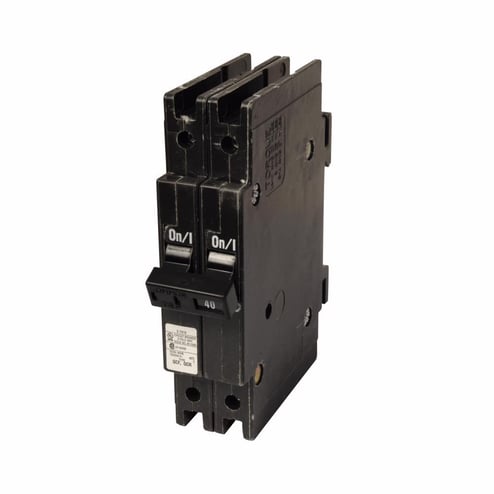

EATON QuickLag QCF2040 Type QCF Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
EATON QuickLag QCF2040 Type QCF Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Eaton | ID: 195900
Manufacturer Part Number: QCF2040
Specifications
| Description | EATON QCF2040 QCF BKR 2P 40A120/240VAC |
| Amperage Rating | 40 A |
| Voltage Rating | 120/240V |
| Actuator | Handle |
| Application | Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment and Circuit Protection, Datacenters - IT Space, CI and Hyper Converged Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QCF 1/2-inch Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,40 A,10 kAIC,Two-pole,120/240 V,Thermal-magnetic,Cable-in/cable-out,QCF,Fixed |
| Connection | Cable-in/cable-out |
| Dimensions | 4.6 IN L x 3.1 IN W x 1.2 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Front |
| Number Of Poles | 2 Pole |
| Standard | UL Listed,CSA Certified |
| Trip Type | Thermal Magnetic |
| Type | Type QCF |
