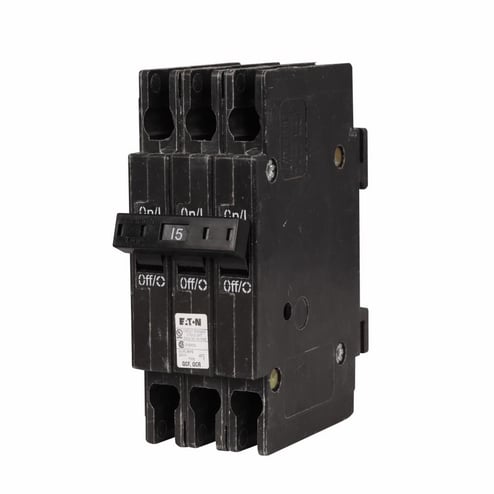

EATON QuickLag QCR3015H Type QCR Miniature Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
EATON QuickLag QCR3015H Type QCR Miniature Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
Eaton | ID: 498628
Manufacturer Part Number: QCR3015H
Specifications
| Description | EATON QCR3015H 3 POLE 240 VAC 10KAIC 15 AMP QCR |
| Amperage Rating | 15 A |
| Voltage Rating | 240V |
| Actuator | Handle |
| Application | Circuit Protection, Conventional Energy, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment and Industrial Applications |
| Catalog Description (MFR) | Eaton Quicklag Type QCR 1/2-inch Industrial Thermal-Magnetic Circuit Breaker,Industrial circuit breaker,15 A,10 kAIC,Three-pole,240 V,Thermal-magnetic,Cable-in/cable-out,QCR,Fixed |
| Connection | Cable-in/cable-out |
| Dimensions | 5.8 IN L x 3.6 IN W x 2.2 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Marketing Message (MFR) | Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options. |
| Mounting Type | Rear |
| Number Of Poles | 3 Pole |
| Standard | CSA Certified,UL Listed,HACR Rated |
| Trip Type | Thermal Magnetic |
| Type | Type QCR |
