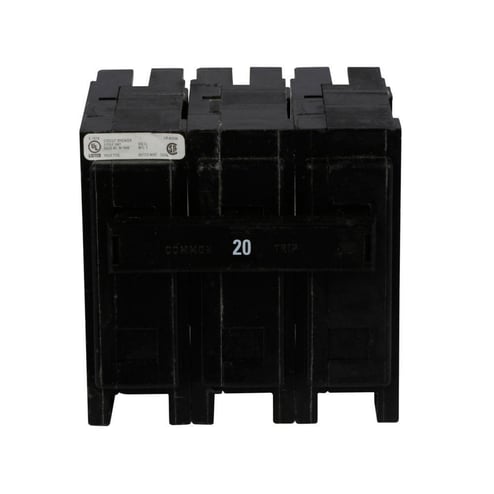

EATON QuickLag QPHW3020H Type QPHW Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
EATON QuickLag QPHW3020H Type QPHW Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
Eaton | ID: 649645
Manufacturer Part Number: QPHW3020H
Technical Documents
Specifications
| Description | EATON QPHW3020H QPHW , 3P, 20A,240V, 22KAIC |
| Amperage Rating | 20 A |
| Voltage Rating | 240V |
| Application | Conventional Energy, Renewable Energy and Alternative Energy Generation, Datacenters, IT Space - CI, Hyper Converged, Marine Vessels and Equipment, Circuit Protection and Industrial Applications |
| Dimensions | 3 IN W x 2.38 IN D x 2.94 IN H |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 22 kA |
| Mounting Type | Plug-On |
| Number Of Poles | 3 Pole |
| Phase | 3 |
| Trip Type | Thermal Magnetic |
| Type | Type QPHW |
| Wire Size | 14 to 4 AWG |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 0
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
