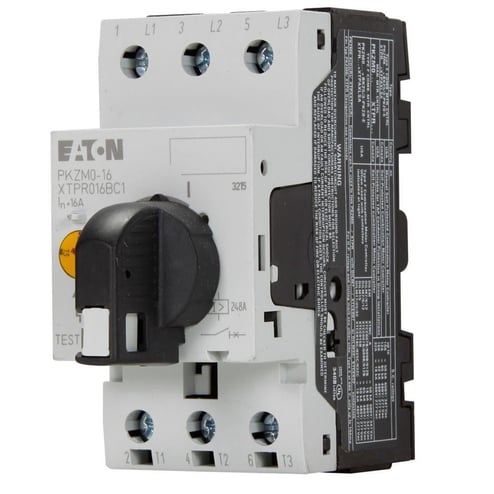

EATON XTPR016BC1 B-Frame Manual Motor Protector, Rotary/ON/OFF Action, 3 Poles, IP20 Enclosure
EATON XTPR016BC1 B-Frame Manual Motor Protector, Rotary/ON/OFF Action, 3 Poles, IP20 Enclosure
Eaton | ID: 532784
Manufacturer Part Number: XTPR016BC1
Technical Documents
Specifications
| Description | C-H XTPR016BC1 MMP Rotary Frame BClass 10 10-16A |
| Amperage Rating | 16 A |
| Voltage Rating | 690V |
| Action | Rotary/ON/OFF |
| Application | Commercial, Institutional Buildings, Structures - Safety and Security Systems |
| Dimensions | 45 mm L x 94 mm W x 93 mm H |
| Enclosure Type | IP20 |
| Frequency Rating | 40/60 Hz |
| Marketing Message (MFR) | Eaton’s XT line brings IEC power control to a whole new level. The XT IEC series includes non-reversing and reversing contactors and starters as well as overload relays and accessories. Enclosed control options include metallic and non-metallic enclosures with circuit breakers, and North American or European fuses. Save space and engineering design time with XT IEC series overload relays. |
| Number Of Poles | 3 Pole |
| Operating Temperature | -25 to 55 deg C |
| Phase | 3 |
| Standard | CSA Std. C22.2,UL 508 |
| Type | B-Frame |
| Wattage | 12.5 kW |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 2
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
