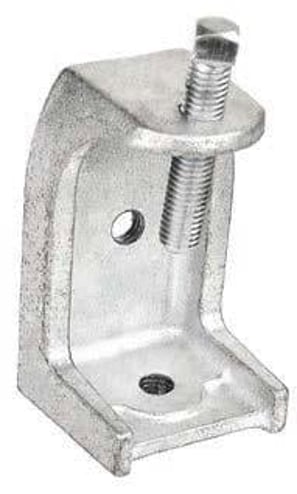

GARVIN MBC-1420WM Wide Mouth Beam Clamp, 1/4-20 Rod, 450 lb Load, Malleable Iron, Zinc Plated
GARVIN MBC-1420WM Wide Mouth Beam Clamp, 1/4-20 Rod, 450 lb Load, Malleable Iron, Zinc Plated
GARVIN | ID: 339292
Manufacturer Part Number: MBC-1420WM
Specifications
| Description | GARVIN MBC-1420WM MI BEAM CLMPW/HOLE1/4" WIDE MOUTH BEAM CLAMP |
| Catalog Description (MFR) | Malleable Iron Beam Clamp With Extra Wide 3-1/8 in. Jaw Opening and 1/4-20 Threaded Holes |
| Certifications | PROP65 |
| Dimensions | 1.75 IN W x 3.83 IN H |
| Finish | Zinc Plated |
| Load Capacity | 450 lb |
| Marketing Message (MFR) | Malleable iron beam clamps with extra wide 3-1/8 in jaw opening and 1/4-20 threaded holes are used with conduit hangers, bridle rings and drop 1/4-20 rods. They are tapped for rods on the bottoms and backs. GARVIN Industries' heavy duty beam clamps are used to hang medium, light or heavy loads from structural beams. Their hardened cup point screw and malleable iron body will not distort or slip off beam edge when tightened. |
| Material | Malleable Iron |
| Rod Size | 1/4-20 |
| Short Description | Mlbl IrnBm xtr Wd 3-1/8" JOpn- |
| Standard | UL/cUL Listed, PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Type | Wide Mouth |
| Warranty Description | One Year Limited |
