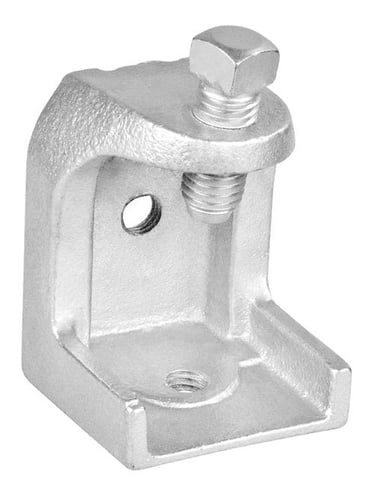

GARVIN MBC-3816WM Wide Mouth Beam Clamp, 3/8-16 Rod, 1300 lb Load, Malleable Iron, Zinc Plated
GARVIN MBC-3816WM Wide Mouth Beam Clamp, 3/8-16 Rod, 1300 lb Load, Malleable Iron, Zinc Plated
GARVIN | ID: 452926
Manufacturer Part Number: MBC-3816WM
Technical Documents
Specifications
| Description | GARVIN MBC-3816WM MI BEAM CLMPW/HOLEWIDE SITE 3/8" WIDE MOUTH BEAMCLAMP |
| Catalog Description (MFR) | Malleable Iron Beam Clamp With Extra Wide 3-1/8 in. Jaw Opening and 3/8-16 Threaded Holes |
| Certifications | PROP65 |
| Dimensions | 3.1 IN H x 1.81 IN W |
| Finish | Zinc Plated |
| Load Capacity | 1300 lb |
| Marketing Message (MFR) | Malleable iron beam clamps with extra wide 3-1/8 in jaw opening and 3/8-16 threaded holes are used with conduit hangers, bridle rings and drop 3/8-16 rods. They are tapped for rods on the bottoms and backs. GARVIN Industries' heavy duty beam clamps are used to hang medium, light or heavy loads from structural beams. Their hardened cup point screw and malleable iron body will not distort or slip off beam edge when tightened. |
| Material | Malleable Iron |
| Rod Size | 3/8-16 |
| Short Description | Mlbl IrnBm xtr Wd 3-1/8" JOpn- |
| Standard | UL/cUL Listed, PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Type | Wide Mouth |
| Warranty Description | One Year Limited |
