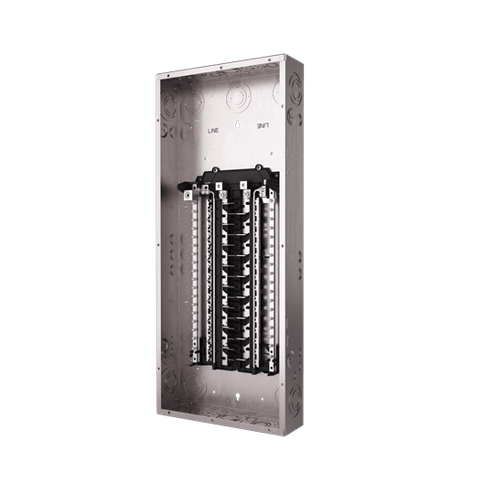

GE PLM2412C 125 Amp, 24 Circuit, Plug-On Neutral Load Center, 120/240 Volt, Single-Phase
GE PLM2412C 125 Amp, 24 Circuit, Plug-On Neutral Load Center, 120/240 Volt, Single-Phase
ABB | ID: 541565
Manufacturer Part Number: PLM2412C
Specifications
| Description | ABB PLM2412C LOAD CTR MLO 125A24CKT N1 GRAY PON |
| Amperage Rating | 125 A |
| Voltage Rating | 120/240V |
| Catalog Description (MFR) | PowerMark PRO convertible plug-on neutral load centers arrive as main lug but have the capability to have a main circuit breaker installed in the field. All ABB load centers are rated up to 60 degree/75 degree centigrade and suitable for use as service entrance equipment when installed in accordance with electrical code. The PLM2412C features space for 24 - 1" circuit breakers and 48 circuits, a 125-ampere bus rating, copper bus bars, and a gray combination/flush enclosure. |
| Dimensions | 14.1 IN W x 3.8 IN D |
| Enclosure | Indoor |
| Interrupt Rating | 22 |
| Load Regulation | 120/240V ac |
| NEMA Rating | 1 |
| Number Of Feeders | Either |
| Phase | 1 Phase |
| Product Type | Convertible loadcenter |
| Standard | UL |
| Type | Convertible |
| Wiring Configuration | 3-Wire |
