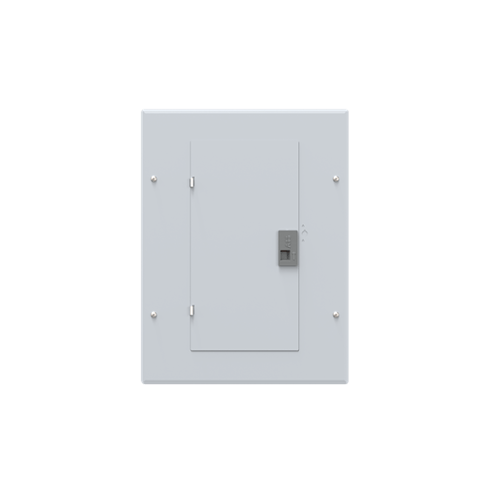

GE TLMQ1412CCU T-Series Single Phase Load Center, 120, 240 VAC, 125 A, 22 kAIC Interrupt
GE TLMQ1412CCU T-Series Single Phase Load Center, 120, 240 VAC, 125 A, 22 kAIC Interrupt
GE | ID: 693987
Manufacturer Part Number: TLMQ1412CCU
Technical Documents
Specifications
| Description | ABB TLMQ1412CCU LD CTR CONV 125A14/28 CU N1 UL |
| Amperage Rating | 125 A |
| Voltage Rating | 120/240V |
| Catalog Description (MFR) | ReliaHome T-Series convertible load centers arrive as main lug, but have the capability to have a main breaker installed. All ABB load centers are rated up to 60 degree/75 degree centrigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The TLMQ1412CCU features space for 12, 1" breakers, a 125 A bus ampere rating, a copper bus, and a combination/flush enclosure. |
| Dimensions | 19 IN H x 14 IN W x 3.7 IN D |
| Enclosure | Indoor |
| Enclosure Type | NEMA 1 |
| Interrupt Rating | 22 kAIC |
| Load Regulation | 120/240V ac |
| NEMA Rating | 1 |
| Number Of Feeders | Either |
| Number Of Spaces | 12 |
| Phase | 1 Phase |
| Product Type | Convertible loadcenter |
| Standard | UL |
| Type | Single Phase |
| Wiring Configuration | 3-Wire |
