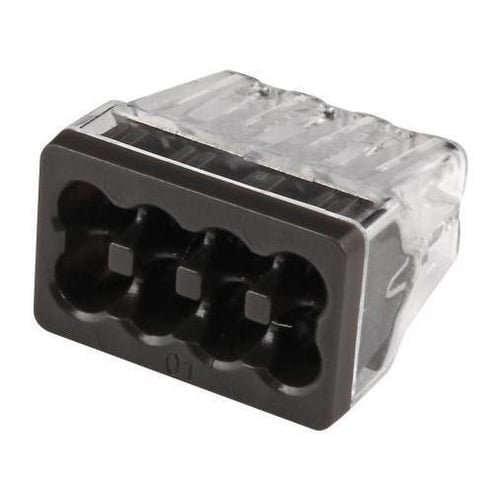

Ideal 30-1090J 8 Port Push-In Wire Connector, 12 AWG, 150/Jar
Ideal 30-1090J 8 Port Push-In Wire Connector, 12 AWG, 150/Jar
IDEAL | ID: 10959
Manufacturer Part Number: 30-1090J
Technical Documents
Specifications
| Description | IDEAL 30-1090J 8PORT CONN REPLACES 30-090JSELL QTY OF 150 = 1 JAR OF 150 CONN |
| Voltage Rating | 600-1000V |
| Application | For Grounding And Bonding Applications |
| Catalog Description (MFR) | IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Connection: 8 Ports, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 90 |
| Color | Black |
| Connection | 8 Ports |
| Finish | Tin Plated |
| Marketing Message (MFR) | The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy. |
| Material | Polycarbonate |
| Product Name | Push-In Wire Connector |
| Special Features | Features: No-Twist Connection Reduces Repetitive Motion Fatigue; Low Insertion Force For Fast And Easy Connections; Compact Size Makes Installation Easy; Clear Shell Gives Visual Verification Of Connection; UL Listed To 486C And CSA Certified To C22.2 #188; UL 467 Listed For Grounding And Bonding Applications; 600V Maximum Building Wire, 1000V; Maximum Signs And Lighting Fixtures; Shell Rated To 105 DEG C; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F); Model: 90 |
| Standard | CSA C22.2 #188, 486C/467 UL Listed, RoHS |
| Temperature Rating | 105 DEG C Shell Rated |
| Type | Push-In |
| Wire Size | 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG |
| Wire Type | Solid/Stranded/Tin-Bonded |
| Wiring Configuration | Solid, Stranded, Stranded (Tin Bonded) |
