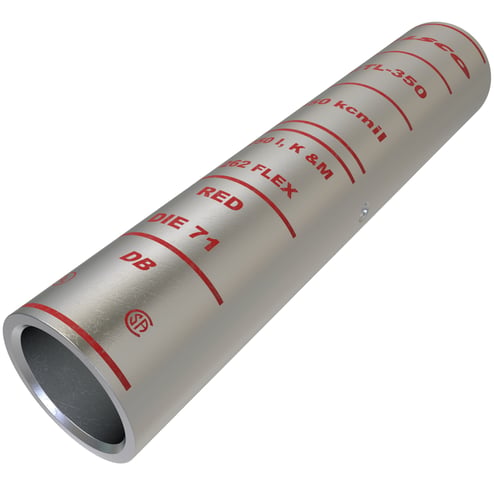

ILSCO SureCrimp CTL-350 CTL Long Barrel Compression Sleeve, 350 kcmil Copper Conductor, Die Code: I-71, 4-1/8 in L, Copper
ILSCO SureCrimp CTL-350 CTL Long Barrel Compression Sleeve, 350 kcmil Copper Conductor, Die Code: I-71, 4-1/8 in L, Copper
ILSCO | ID: 77813
Manufacturer Part Number: CTL-350
Technical Documents
Specifications
| Description | ILSCO CTL-350 350MCM COP CRIMP CONN |
| Application | For use with splicer/reducer, grounding and bonding applications |
| Catalog Description (MFR) | Surecrimp Copper Compression Sleeve, Conductor Size 350, Long Barrel, Tin Plated, UL, CSA |
| Certifications | ECCN, PROP65 |
| Color | Red |
| Connector Type | Crimp |
| Dimensions | 0.703 IN ID x 0.89 IN OD |
| Finish | Electro-Plated Tin |
| Material | Copper |
| Standard | CSA File No. LR29601, NEBS Level 3, UL 486A-BIUL 453G, UL 467 File No. E6207, ECCN EAR99, PROP65: Cancer -www.p65warnings.ca.gov |
| Type | Long Barrel |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 6
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
